薄壁球轴承XP0系列

作者：发布时间：2016-02-23 浏览次数：8250

打印收藏关闭

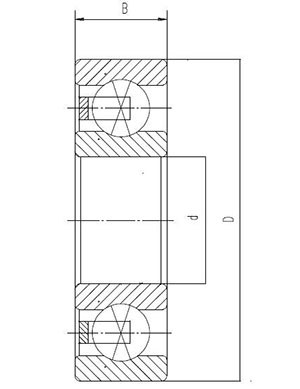

	对应型号		基本尺寸			球数	重量	额定负载						极限转速
型号	对应型号		d	D	B			径向		推力		倾覆
	KAYDON	SILVERTHIN	d	D	B			静	动	静	动	静	动
	KAYDON	SILVERTHIN	mm	mm	mm		Kg	Co(N)	Cr(N)	N	N	Nm	Nm	(RPM)
HNAA10XL0	KAA10XL0	SAA10XL0	25.4	34.925	4.763	21	0.014	1,290	1,330	2,140	3,910	10	25	16,840
HNAA15XL0	KAA15XL0	SAA15XL0	38.1	47.625	4.763	29	0.018	1,780	1,560	2,890	4,540	25	40	11,850
HNA020XP0	KA020XPO	SA020XPO	50.8	63.5	6.35	27	0.045	3,020	2,490	4,800	7,300	55	80	8,890
HNB020XP0	KB020XPO	SB020XPO	50.8	66.675	7.938	23	0.073	4,140	3,560	6,490	10,320	80	120	8,650
HNA025XP0	KA025XPO	SA025XPO	63.5	76.2	6.35	33	0.059	3,690	2,710	5,830	7,870	80	110	7,270
HNB025XP0	KB025XPO	SB025XPO	63.5	79.375	7.938	28	0.091	5,070	3,830	7,780	11,170	110	160	7,110
HNA030XP0	KA030XPO	SA030XPO	76.2	88.9	6.35	39	0.068	4,400	2,890	6,810	8,360	110	140	6,150
HNB030XP0	KB030XPO	SB030XPO	76.2	92.075	7.938	33	0.109	5,960	4,090	9,120	11,920	150	200	6,040
HNA035XP0	KA035XPO	SA035XPO	88.9	101.6	6.35	45	0.082	5,070	3,070	7,780	8,850	150	170	5,330
HNB035XP0	KB035XPO	SB035XPO	88.9	104.775	7.938	38	0.122	6,850	4,310	10,410	12,500	200	240	5,250
HNA040XP0	KA040XPO	SA040XPO	101.6	114.3	6.35	51	0.086	5,740	3,200	8,810	9,250	190	200	4,710
HNB040XP0	KB040XPO	SB040XPO	101.6	117.475	7.938	43	0.136	7,780	4,540	11,700	13,120	260	290	4,640
HNC040XP0	KC040XPO	SC040XPO	101.6	120.65	9.525	35	0.204	9,340	5,740	13,830	16,640	310	370	4,570
HND040XP0	KD040XPO	SD040XPO	101.6	127	12.7	27	0.354	13,700	10,010	22,020	29,000	500	660	4,440
HNF040XP0	KF040XPO	SF040XPO	101.6	139.7	19.05	19	0.862	23,840	17,530	35,500	50,800	860	1,230	4,210
HNG040XP0	KG040XPO	SG040XPO	101.6	152.4	25.4	15	1.633	36,520	29,800	57,650	86,470	1,460	2,200	4,000
HNA042XP0	KA042XPO	SA042XPO	107.95	120.65	6.35	54	0.091	6,090	3,250	9,300	9,390	210	210	4,440
HNB042XP0	KB042XPO	SB042XPO	107.95	123.825	7.938	45	0.141	8,140	4,580	12,190	13,340	280	310	4,380
HNC042XP0	KC042XPO	SC042XPO	107.95	127	9.525	37	0.213	9,880	5,870	14,550	17,040	340	400	4,320
HND042XP0	KD042XPO	SD042XPO	107.95	133.35	12.7	28	0.376	14,190	10,100	22,730	29,270	550	710	4,210
HNF042XP0	KF042XPO	SF042XPO	107.95	146.05	19.05	20	0.907	25,090	18,100	37,370	52,530	950	1,330	4,000
HNG042XP0	KG042XPO	SG042XPO	107.95	158.75	25.4	15	1.724	36,520	29,800	57,650	86,470	1,540	2,310	3,810
HNA045XP0	KA045XPO	SA045XPO	114.3	127	6.35	57	0.1	6,410	3,340	9,790	9,650	240	230	4,210
HNB045XP0	KB045XPO	SB045XPO	114.3	130.175	7.938	48	0.15	8,670	4,720	12,990	13,700	320	330	4,160
HNC045XP0	KC045XPO	SC045XPO	114.3	133.35	9.525	39	0.218	10,410	6,010	15,300	17,390	380	430	4,100
HND045XP0	KD045XPO	SD045XPO	114.3	139.7	12.7	30	0.399	15,210	10,450	24,290	30,340	620	770	4,000
HNF045XP0	KF045XPO	SF045XPO	114.3	152.4	19.05	21	0.953	26,380	18,730	39,230	54,270	1,050	1,450	3,810
HNG045XP0	KG045XPO	SG045XPO	114.3	165.1	25.4	16	1.814	38,970	31,140	61,470	90,250	1,720	2,520	3,640
HNA047XP0	KA047XPO	SA047XPO	120.65	133.35	6.35	60	0.104	6,760	3,380	10,280	9,880	260	250	4,000
HNB047XP0	KB047XPO	SB047XPO	120.65	136.525	7.938	50	0.154	9,030	4,760	13,480	13,830	350	350	3,950
HNC047XP0	KC047XPO	SC047XPO	120.65	139.7	9.525	41	0.227	10,940	6,090	16,060	17,660	420	460	3,900
HND047XP0	KD047XPO	SD047XPO	120.65	146.05	12.7	31	0.426	15,700	10,500	25,000	30,430	670	810	3,810
HNF047XP0	KF047XPO	SF047XPO	120.65	158.75	19.05	22	0.998	27,620	19,170	41,010	55,560	1,150	1,550	3,640
HNG047XP0	KG047XPO	SG047XPO	120.65	171.45	25.4	17	1.86	41,370	32,430	65,300	93,990	1,910	2,750	3,480
HNA050XP0	KA050XPO	SA050XPO	127	139.7	6.35	63	0.109	7,070	3,430	10,760	9,960	290	270	3,810
HNB050XP0	KB050XPO	SB050XPO	127	142.875	7.938	53	0.172	9,560	4,890	14,280	14,190	390	380	3,760
HNC050XP0	KC050XPO	SC050XPO	127	146.05	9.525	43	0.263	11,520	6,180	16,810	17,970	460	490	3,720
HND050XP0	KD050XPO	SD050XPO	127	152.4	12.7	33	0.454	16,730	10,810	26,560	31,320	740	870	3,640
HNF050XP0	KF050XPO	SF050XPO	127	165.1	19.05	23	1.043	28,870	19,480	42,700	56,540	1,250	1,650	3,480
HNG050XP0	KG050XPO	SG050XPO	127	177.8	25.4	18	1.95	43,810	33,670	69,170	97,640	2,110	2,980	3,330
HNA055XP0	KA055XPO	SA055XPO	139.7	152.4	6.35	69	0.113	7,780	3,560	11,790	10,320	340	300	3,480
HNB055XP0	KB055XPO	SB055XPO	139.7	155.575	7.938	58	0.186	10,500	5,030	15,570	14,590	460	430	3,440
HNC055XP0	KC055XPO	SC055XPO	139.7	158.75	9.525	47	0.268	12,590	6,410	18,280	18,550	550	550	3,400
HND055XP0	KD055XPO	SD055XPO	139.7	165.1	12.7	36	0.481	18,240	11,170	28,820	32,340	880	990	3,330
HNF055XP0	KF055XPO	SF055XPO	139.7	177.8	19.05	25	1.134	31,360	20,190	46,130	58,580	1,470	1,860	3,200
HNG055XP0	KG055XPO	SG055XPO	139.7	190.5	25.4	19	2.132	46,260	34,920	73,000	101,200	2,410	3,340	3,080
HNA060XP0	KA060XPO	SA060XPO	152.4	165.1	6.35	75	0.127	8,450	3,690	12,770	10,760	410	340	3,200
HNB060XP0	KB060XPO	SB060XPO	152.4	168.275	7.938	63	0.2	11,390	5,200	16,860	15,030	540	480	3,170
HNC060XP0	KC060XPO	SC060XPO	152.4	171.45	9.525	51	0.286	13,660	6,630	19,790	19,220	640	620	3,140
HND060XP0	KD060XPO	SD060XPO	152.4	177.8	12.7	39	0.526	19,790	11,480	31,090	33,360	1,030	1,100	3,080
HNF060XP0	KF060XPO	SF060XPO	152.4	190.5	19.05	27	1.225	33,900	20,730	49,510	60,180	1,700	2,060	2,960
HNG060XP0	KG060XPO	SG060XPO	152.4	203.2	25.4	21	2.313	51,110	37,320	80,690	108,180	2,870	3,850	2,860
HNA065XP0	KA065XPO	SA065XPO	165.1	177.8	6.35	81	0.136	9,120	3,780	13,790	10,900	470	370	2,960
HNB065XP0	KB065XPO	SB065XPO	165.1	180.975	7.938	68	0.213	12,280	5,340	18,150	15,440	630	530	2,940
HNC065XP0	KC065XPO	SC065XPO	165.1	184.15	9.525	55	0.308	14,720	6,810	21,310	19,750	740	690	2,910
HND065XP0	KD065XPO	SD065XPO	165.1	190.5	12.7	42	0.553	21,310	11,790	33,360	34,160	1,190	1,220	2,860
HNF065XP0	KF065XPO	SF065XPO	165.1	203.2	19.05	29	1.315	36,390	21,310	52,930	61,830	1,950	2,280	2,760
HNG065XP0	KG065XPO	SG065XPO	165.1	215.9	25.4	22	2.449	53,560	37,900	84,120	109,870	3,200	4,190	2,670
HNA070XP0	KA070XPO	SA070XPO	177.8	190.5	6.35	87	0.141	9,790	3,870	14,770	11,210	540	410	2,760
HNB070XP0	KB070XPO	SB070XPO	177.8	193.675	7.938	73	0.227	13,210	5,520	19,480	16,010	720	590	2,740
HNC070XP0	KC070XPO	SC070XPO	177.8	196.85	9.525	59	0.331	15,790	6,980	22,770	20,240	850	760	2,710
HND070XP0	KD070XPO	SD070XPO	177.8	203.2	12.7	45	0.594	22,820	12,140	35,670	35,190	1,360	1,340	2,670
HNF070XP0	KF070XPO	SF070XPO	177.8	215.9	19.05	31	1.451	38,920	21,890	56,360	63,520	2,220	2,500	2,580
HNG070XP0	KG070XPO	SG070XPO	177.8	228.6	25.4	24	2.631	58,410	39,500	91,280	114,540	3,710	4,660	2,500
HNA075XP0	KA075XPO	SA075XPO	190.5	203.2	6.35	93	0.154	10,450	3,960	15,750	11,480	620	450	2,580
HNB075XP0	KB075XPO	SB075XPO	190.5	206.375	7.938	78	0.24	14,100	5,690	20,770	16,500	820	660	2,560
HNC075XP0	KC075XPO	SC075XPO	190.5	209.55	9.525	63	0.354	16,860	7,120	24,240	20,640	970	820	2,540
HND075XP0	KD075XPO	SD075XPO	190.5	215.9	12.7	48	0.64	24,330	12,460	37,940	36,120	1,540	1,470	2,500
HNF075XP0	KF075XPO	SF075XPO	190.5	228.6	19.05	33	1.542	41,410	22,420	59,780	64,990	2,500	2,720	2,420
HNG075XP0	KG075XPO	SG075XPO	190.5	241.3	25.4	25	2.767	47,330	39,860	94,610	115,610	4,090	4,990	2,350
HNA080XP0	KA080XPO	SA080XPO	203.2	215.9	6.35	99	0.172	11,120	4,050	16,770	11,740	700	490	2,420
HNB080XP0	KB080XPO	SB080XPO	203.2	219.075	7.938	83	0.259	14,990	5,690	22,060	16,550	930	700	2,410
HNC080XP0	KC080XPO	SC080XPO	203.2	222.25	9.525	67	0.381	17,930	7,340	25,760	21,220	1,100	900	2,390
HND080XP0	KD080XPO	SD080XPO	203.2	228.6	12.7	51	0.694	25,840	12,720	40,210	36,880	1,740	1,590	2,350
HNF080XP0	KF080XPO	SF080XPO	203.2	241.3	19.05	35	1.588	43,950	22,860	63,160	66,280	2,810	2,950	2,290
HNG080XP0	KG080XPO	SG080XPO	203.2	254	25.4	27	2.948	65,700	41,370	101,820	119,920	4,650	5,480	2,220
HNA090XP0	KA090XPO	SA090XPO	228.6	241.3	6.35	111	0.2	12,500	4,180	18,730	12,140	880	570	2,160
HNB090XP0	KB090XPO	SB090XPO	228.6	244.475	7.938	93	0.299	16,810	5,920	24,640	17,170	1,170	810	2,150
HNC090XP0	KC090XPO	SC090XPO	228.6	247.65	9.525	75	0.426	20,060	7,700	28,780	22,330	1,370	1,060	2,130
HND090XP0	KD090XPO	SD090XPO	228.6	254	12.7	57	0.78	28,910	13,210	44,750	38,340	2,160	1,850	2,110
HNF090XP0	KF090XPO	SF090XPO	228.6	266.7	19.05	39	1.769	48,930	23,840	70,020	69,170	3,470	3,430	2,050
HNG090XP0	KG090XPO	SG090XPO	228.6	279.4	25.4	30	3.266	73,040	43,240	112,410	125,440	5,710	6,370	2,000
HNA100XP0	KA100XPO	SA100XPO	254	266.7	6.35	123	0.227	13,830	4,400	20,730	12,720	1,080	660	1,950
HNB100XP0	KB100XPO	SB100XPO	254	269.875	7.938	103	0.331	18,640	6,230	27,270	18,020	1,430	940	1,940
HNC100XP0	KC100XPO	SC100XPO	254	273.05	9.525	83	0.481	22,200	7,920	31,760	23,000	1,670	1,210	1,930
HND100XP0	KD100XPO	SD100XPO	254	279.4	12.7	63	0.853	31,940	13,660	49,290	39,590	2,630	2,110	1,900
HNF100XP0	KF100XPO	SF100XPO	254	292.1	19.05	43	1.95	53,960	24,690	76,780	71,440	4,190	3,900	1,860
HNG100XP0	KG100XPO	SG100XPO	254	304.8	25.4	33	3.583	80,330	44,660	122,860	129,490	6,860	7,240	1,820
HNA110XP0	KA110XPO	SA110XPO	279.4	292.1	6.35	135	0.236	15,170	4,580	22,730	13,260	1,300	760	1,780
HNB110XP0	KB110XPO	SB110XPO	279.4	295.275	7.938	113	0.34	20,420	6,510	29,800	18,370	1,710	1,060	1,770
HNC110XP0	KC110XPO	SC110XPO	279.4	298.45	9.525	91	0.526	24,330	8,360	34,700	23,490	2,010	1,360	1,760
HND110XP0	KD110XPO	SD110XPO	279.4	304.8	12.7	69	0.934	35,010	14,150	53,820	41,010	3,140	2,400	1,740
HNF110XP0	KF110XPO	SF110XPO	279.4	317.5	19.05	47	2.177	58,980	25,950	83,580	73,880	4,990	4,410	1,700
HNG110XP0	KG110XPO	SG110XPO	279.4	330.2	25.4	36	3.901	87,630	46,080	133,360	133,710	8,130	8,150	1,670
HNA120XP0	KA120XPO	SA120XPO	304.8	317.5	6.35	147	0.254	16,550	4,800	24,730	13,700	1,540	850	1,630
HNB120XP0	KB120XPO	SB120XPO	304.8	320.675	7.938	123	0.376	22,240	6,850	32,430	18,990	2,030	1,190	1,620
HNC120XP0	KC120XPO	SC120XPO	304.8	323.85	9.525	99	0.567	26,470	8,780	37,720	24,330	2,370	1,530	1,620
HND120XP0	KD120XPO	SD120XPO	304.8	330.2	12.7	75	1.021	38,030	14,770	58,450	42,840	3,710	2,720	1,600
HNF120XP0	KF120XPO	SE120XPO	304.8	342.9	19.05	51	2.359	64,010	27,160	90,480	76,510	5,860	4,950	1,570
HNG120XP0	KG120XPO	SG120XPO	304.8	355.6	25.4	39	4.218	94,930	47,550	143,900	137,850	9,500	9,100	1,540
HNB140XP0	KB140XPO	SB140XPO	355.6	371.475	7.938	143	0.476	25,840	7,470	37,590	20,110	2,730	1,460	1,400
HNC140XP0	KC140XPO	SC140XPO	355.6	374.65	9.525	115	0.689	30,740	9,580	43,680	25,800	3,190	1,880	1,390
HND140XP0	KD140XPO	SD140XPO	355.6	381	12.7	87	1.238	44,130	15,390	67,520	44,620	4,970	3,290	1,380
HNF140XP0	KF140XPO	SF140XPO	355.6	393.7	19.05	59	2.722	74,060	29,450	104,130	80,470	7,800	6,030	1,360
HNG140XP0	KG140XPO	SG140XPO	355.6	406.4	25.4	45	4.899	109,520	50,180	164,940	145,500	12,570	11,090	1,330
HNB160XP0	KB160XPO	SB160XPO	406.4	422.275	7.938	163	0.544	29,450	8,060	42,790	21,350	3,540	1,770	1,230
HNC160XP0	KC160XPO	SC160XPO	406.4	425.45	9.525	131	0.785	35,050	10,320	49,640	26,910	4,130	2,240	1,220
HND160XP0	KD160XPO	SD160XPO	406.4	431.8	12.7	99	1.406	50,220	16,410	76,640	46,710	6,420	3,920	1,210
HNF160XP0	KF160XPO	SF160XPO	406.4	444.5	19.05	67	3.221	84,070	31,600	117,790	84,520	10,020	7,190	1,190
HNG160XP0	KG160XPO	SG160XPO	406.4	457.2	25.4	51	5.579	124,150	52,580	185,980	152,440	16,060	13,170	1,180
HNB180XP0	KB180XPO	SB180XPO	457.2	473.075	7.938	183	0.612	33,090	8,610	47,950	22,460	4,460	2,090	1,090
HNC180XP0	KC180XPO	SC180XPO	457.2	476.25	9.525	147	0.88	39,320	11,020	55,650	28,420	5,190	2,650	1,090
HND180XP0	KD180XPO	SD180XPO	457.2	482.6	12.7	111	1.579	56,270	17,490	85,670	48,350	8,050	4,540	1,080
HNF180XP0	KF180XPO	SF180XPO	457.2	495.3	19.05	75	3.583	94,120	33,620	131,490	88,880	12,520	8,460	1,070
HNG180XP0	KG180XPO	SG180XPO	457.2	508	25.4	57	6.214	138,740	55,010	207,020	158,620	19,980	15,310	1,050
HNB200XP0	KB200XPO	SB200XPO	508	523.875	7.938	203	0.68	36,700	9,130	53,110	23,400	5,480	2,410	980
HNC200XP0	KC200XPO	SC200XPO	508	527.05	9.525	163	0.98	43,590	11,680	61,610	29,670	6,380	3,070	980
HND200XP0	KD200XPO	SD200XPO	508	533.4	12.7	123	1.746	62,360	18,520	94,840	50,620	9,870	5,270	980
HNF200XP0	KF200XPO	SF200XPO	508	546.1	19.05	83	4.037	104,180	35,520	145,100	91,500	15,300	9,650	960
HNG200XP0	KG200XPO	SG200XPO	508	558.8	25.4	63	7.167	153,330	58,020	227,930	163,610	24,320	17,460	950
HNC250XP0	KC250XPO	SC250XPO	635	654.05	9.525	203	1.22	54,270	13,180	76,510	32,470	9,860	4,190	790
HND250XP0	KD250XPO	SD250XPO	635	660.4	12.7	153	2.173	77,580	20,860	117,480	54,540	15,220	7,060	780
HNF250XP0	KF250XPO	SF250XPO	635	673.1	19.05	103	4.944	129,270	39,870	179,130	97,460	23,430	12,750	780
HNG250XP0	KG250XPO	SG250XPO	635	685.8	25.4	78	8.845	189,850	64,900	280,730	178,370	37,080	23,560	770
HNC300XP0	KC300XPO	SC300XPO	762	781.05	9.525	243	1.456	64,990	14,500	91,460	35,590	14,110	5,490	660
HND300XP0	KD300XPO	SD300XPO	762	787.4	12.7	183	2.599	92,790	22,920	140,300	59,780	21,740	9,270	660
HNF300XP0	KF300XPO	SF300XPO	762	800.1	19.05	123	5.897	154,350	43,720	213,340	105,070	33,330	16,410	650
HNG300XP0	KG300XPO	SG300XPO	762	812.8	25.4	93	10.569	226,370	71,010	333,350	189,090	52,500	29,780	650
HNF350XP0	KF350XPO	SF350XPO	889	927.1	19.05	143	6.849	179,490	47,160	247,370	111,070	44,930	20,170	560
HNG350XP0	KG350XPO	SG350XPO	889	939.8	25.4	108	12.292	262,890	76,490	385,570	196,260	70,510	35,890	560
HNF400XP0	KF400XPO	SF400XPO	1016	1054.1	19.05	163	7.802	204,570	50,270	281,570	118,010	58,290	24,430	490
HNG400XP0	KG400XPO	SG400XPO	1016	1066.8	25.4	123	13.971	299,410	81,430	438,550	209,420	91,340	43,620	490
