薄壁球轴承CP0系列

作者：发布时间：2016-02-23 浏览次数：5333

打印收藏关闭

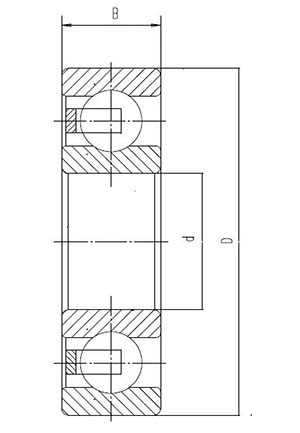

	对应型号		基本尺寸			球数	重量	额定负载						极限转速
型号	对应型号		d	D	B			径向		推力		倾覆
型号	KAYDON	SILVERTHIN	d	D	B			静	动	静	动	静	动
	KAYDON	SILVERTHIN	mm	mm	mm		Kg	Co(N)	Cr(N)	N	N	Nm	Nm	(RPM)
HNAA10CL0	KAA10CL0	SAA10CL0	25.4	34.925	4.763	21	0.014	1,290	1,330	2,140	3,910	10	25	16,840
HNAA15CL0	KAA15CL0	SAA15CL0	38.1	47.625	4.763	29	0.018	1,780	1,560	2,890	4,540	25	40	11,850
HNA020CP0	KA020CP0	SA020CP0	50.8	63.5	6.35	27	0.045	3,020	2,490	4,800	7,300	55	80	8,890
HNB020CP0	KB020CP0	SB020CP0	50.8	66.675	7.938	23	0.073	4,140	3,560	6,490	10,320	80	120	8,650
HNA025CP0	KA025CP0	SA025CP0	63.5	76.2	6.35	33	0.059	3,690	2,710	5,830	7,870	80	110	7,270
HNB025CP0	KB025CP0	SB025CP0	63.5	79.375	7.938	28	0.091	5,070	3,830	7,780	11,170	110	160	7,110
HNA030CP0	KA030CP0	SA030CP0	76.2	88.9	6.35	39	0.068	4,400	2,890	6,810	8,360	110	140	6,150
HNB030CP0	KB030CP0	SB030CP0	76.2	92.075	7.938	33	0.109	5,960	4,090	9,120	11,920	150	200	6,040
HNA035CP0	KA035CP0	SA035CP0	88.9	101.6	6.35	45	0.082	5,070	3,070	7,780	8,850	150	170	5,330
HNB035CP0	KB035CP0	SB035CP0	88.9	104.775	7.938	38	0.122	6,850	4,310	10,410	12,500	200	240	5,250
HNA040CP0	KA040CP0	SA040CP0	101.6	114.3	6.35	51	0.086	5,740	3,200	8,810	9,250	190	200	4,710
HNB040CP0	KB040CP0	SB040CP0	101.6	117.475	7.938	43	0.136	7,780	4,540	11,700	13,120	260	290	4,640
HNC040CP0	KC040CP0	SC040CP0	101.6	120.65	9.525	35	0.204	9,340	5,740	13,830	16,640	310	370	4,570
HND040CP0	KD040CP0	SD040CP0	101.6	127	12.7	27	0.354	13,700	10,010	22,020	29,000	500	660	4,440
HNF040CP0	KF040CP0	SF040CP0	101.6	139.7	19.05	19	0.862	23,840	17,530	35,500	50,800	860	1,230	4,210
HNG040CP0	KG040CP0	SG040CP0	101.6	152.4	25.4	15	1.633	36,520	29,800	57,650	86,470	1,460	2,200	4,000
HNA042CP0	KA042CP0	SA042CP0	107.95	120.65	6.35	54	0.091	6,090	3,250	9,300	9,390	210	210	4,440
HNB042CP0	KB042CP0	SB042CP0	107.95	123.825	7.938	45	0.141	8,140	4,580	12,190	13,340	280	310	4,380
HNC042CP0	KC042CP0	SC042CP0	107.95	127	9.525	37	0.213	9,880	5,870	14,550	17,040	340	400	4,320
HND042CP0	KD042CP0	SD042CP0	107.95	133.35	12.7	28	0.376	14,190	10,100	22,730	29,270	550	710	4,210
HNF042CP0	KF042CP0	SF042CP0	107.95	146.05	19.05	20	0.907	25,090	18,100	37,370	52,530	950	1,330	4,000
HNG042CP0	KG042CP0	SG042CP0	107.95	158.75	25.4	15	1.724	36,520	29,800	57,650	86,470	1,540	2,310	3,810
HNA045CP0	KA045CP0	SA045CP0	114.3	127	6.35	57	0.1	6,410	3,340	9,790	9,650	240	230	4,210
HNB045CP0	KB045CP0	SB045CP0	114.3	130.175	7.938	48	0.15	8,670	4,720	12,990	13,700	320	330	4,160
HNC045CP0	KC045CP0	SC045CP0	114.3	133.35	9.525	39	0.218	10,410	6,010	15,300	17,390	380	430	4,100
HND045CP0	KD045CP0	SD045CP0	114.3	139.7	12.7	30	0.399	15,210	10,450	24,290	30,340	620	770	4,000
HNF045CP0	KF045CP0	SF045CP0	114.3	152.4	19.05	21	0.953	26,380	18,730	39,230	54,270	1,050	1,450	3,810
HNG045CP0	KG045CP0	SG045CP0	114.3	165.1	25.4	16	1.814	38,970	31,140	61,470	90,250	1,720	2,520	3,640
HNA047CP0	KA047CP0	SA047CP0	120.65	133.35	6.35	60	0.104	6,760	3,380	10,280	9,880	260	250	4,000
HNB047CP0	KB047CP0	SB047CP0	120.65	136.525	7.938	50	0.154	9,030	4,760	13,480	13,830	350	350	3,950
HNC047CP0	KC047CP0	SC047CP0	120.65	139.7	9.525	41	0.227	10,940	6,090	16,060	17,660	420	460	3,900
HND047CP0	KD047CP0	SD047CP0	120.65	146.05	12.7	31	0.426	15,700	10,500	25,000	30,430	670	810	3,810
HNF047CP0	KF047CP0	SF047CP0	120.65	158.75	19.05	22	0.998	27,620	19,170	41,010	55,560	1,150	1,550	3,640
HNG047CP0	KG047CP0	SG047CP0	120.65	171.45	25.4	17	1.86	41,370	32,430	65,300	93,990	1,910	2,750	3,480
HNA050CP0	KA050CP0	SA050CP0	127	139.7	6.35	63	0.109	7,070	3,430	10,760	9,960	290	270	3,810
HNB050CP0	KB050CP0	SB050CP0	127	142.875	7.938	53	0.172	9,560	4,890	14,280	14,190	390	380	3,760
HNC050CP0	KC050CP0	SC050CP0	127	146.05	9.525	43	0.263	11,520	6,180	16,810	17,970	460	490	3,720
HND050CP0	KD050CP0	SD050CP0	127	152.4	12.7	33	0.454	16,730	10,810	26,560	31,320	740	870	3,640
HNF050CP0	KF050CP0	SF050CP0	127	165.1	19.05	23	1.043	28,870	19,480	42,700	56,540	1,250	1,650	3,480
HNG050CP0	KG050CP0	SG050CP0	127	177.8	25.4	18	1.95	43,810	33,670	69,170	97,640	2,110	2,980	3,330
HNA055CP0	KA055CP0	SA055CP0	139.7	152.4	6.35	69	0.113	7,780	3,560	11,790	10,320	340	300	3,480
HNB055CP0	KB055CP0	SB055CP0	139.7	155.575	7.938	58	0.186	10,500	5,030	15,570	14,590	460	430	3,440
HNC055CP0	KC055CP0	SC055CP0	139.7	158.75	9.525	47	0.268	12,590	6,410	18,280	18,550	550	550	3,400
HND055CP0	KD055CP0	SD055CP0	139.7	165.1	12.7	36	0.481	18,240	11,170	28,820	32,340	880	990	3,330
HNF055CP0	KF055CP0	SF055CP0	139.7	177.8	19.05	25	1.134	31,360	20,190	46,130	58,580	1,470	1,860	3,200
HNG055CP0	KG055CP0	SG055CP0	139.7	190.5	25.4	19	2.132	46,260	34,920	73,000	101,200	2,410	3,340	3,080
HNA060CP0	KA060CP0	SA060CP0	152.4	165.1	6.35	75	0.127	8,450	3,690	12,770	10,760	410	340	3,200
HNB060CP0	KB060CP0	SB060CP0	152.4	168.275	7.938	63	0.2	11,390	5,200	16,860	15,030	540	480	3,170
HNC060CP0	KC060CP0	SC060CP0	152.4	171.45	9.525	51	0.286	13,660	6,630	19,790	19,220	640	620	3,140
HND060CP0	KD060CP0	SD060CP0	152.4	177.8	12.7	39	0.526	19,790	11,480	31,090	33,360	1,030	1,100	3,080
HNF060CP0	KF060CP0	SF060CP0	152.4	190.5	19.05	27	1.225	33,900	20,730	49,510	60,180	1,700	2,060	2,960
HNG060CP0	KG060CP0	SG060CP0	152.4	203.2	25.4	21	2.313	51,110	37,320	80,690	108,180	2,870	3,850	2,860
HNA065CP0	KA065CP0	SA065CP0	165.1	177.8	6.35	81	0.136	9,120	3,780	13,790	10,900	470	370	2,960
HNB065CP0	KB065CP0	SB065CP0	165.1	180.975	7.938	68	0.213	12,280	5,340	18,150	15,440	630	530	2,940
HNC065CP0	KC065CP0	SC065CP0	165.1	184.15	9.525	55	0.308	14,720	6,810	21,310	19,750	740	690	2,910
HND065CP0	KD065CP0	SD065CP0	165.1	190.5	12.7	42	0.553	21,310	11,790	33,360	34,160	1,190	1,220	2,860
HNF065CP0	KF065CP0	SF065CP0	165.1	203.2	19.05	29	1.315	36,390	21,310	52,930	61,830	1,950	2,280	2,760
HNG065CP0	KG065CP0	SG065CP0	165.1	215.9	25.4	22	2.449	53,560	37,900	84,120	109,870	3,200	4,190	2,670
HNA070CP0	KA070CP0	SA070CP0	177.8	190.5	6.35	87	0.141	9,790	3,870	14,770	11,210	540	410	2,760
HNB070CP0	KB070CP0	SB070CP0	177.8	193.675	7.938	73	0.227	13,210	5,520	19,480	16,010	720	590	2,740
HNC070CP0	KC070CP0	SC070CP0	177.8	196.85	9.525	59	0.331	15,790	6,980	22,770	20,240	850	760	2,710
HND070CP0	KD070CP0	SD070CP0	177.8	203.2	12.7	45	0.594	22,820	12,140	35,670	35,190	1,360	1,340	2,670
HNF070CP0	KF070CP0	SF070CP0	177.8	215.9	19.05	31	1.451	38,920	21,890	56,360	63,520	2,220	2,500	2,580
HNG070CP0	KG070CP0	SG070CP0	177.8	228.6	25.4	24	2.631	58,410	39,500	91,280	114,540	3,710	4,660	2,500
HNA075CP0	KA075CP0	SA075CP0	190.5	203.2	6.35	93	0.154	10,450	3,960	15,750	11,480	620	450	2,580
HNB075CP0	KB075CP0	SB075CP0	190.5	206.375	7.938	78	0.24	14,100	5,690	20,770	16,500	820	660	2,560
HNC075CP0	KC075CP0	SC075CP0	190.5	209.55	9.525	63	0.354	16,860	7,120	24,240	20,640	970	820	2,540
HND075CP0	KD075CP0	SD075CP0	190.5	215.9	12.7	48	0.64	24,330	12,460	37,940	36,120	1,540	1,470	2,500
HNF075CP0	KF075CP0	SF075CP0	190.5	228.6	19.05	33	1.542	41,410	22,420	59,780	64,990	2,500	2,720	2,420
HNG075CP0	KG075CP0	SG075CP0	190.5	241.3	25.4	25	2.767	47,330	39,860	94,610	115,610	4,090	4,990	2,350
HNA080CP0	KA080CP0	SA080CP0	203.2	215.9	6.35	99	0.172	11,120	4,050	16,770	11,740	700	490	2,420
HNB080CP0	KB080CP0	SB080CP0	203.2	219.075	7.938	83	0.259	14,990	5,690	22,060	16,550	930	700	2,410
HNC080CP0	KC080CP0	SC080CP0	203.2	222.25	9.525	67	0.381	17,930	7,340	25,760	21,220	1,100	900	2,390
HND080CP0	KD080CP0	SD080CP0	203.2	228.6	12.7	51	0.694	25,840	12,720	40,210	36,880	1,740	1,590	2,350
HNF080CP0	KF080CP0	SF080CP0	203.2	241.3	19.05	35	1.588	43,950	22,860	63,160	66,280	2,810	2,950	2,290
HNG080CP0	KG080CP0	SG080CP0	203.2	254	25.4	27	2.948	65,700	41,370	101,820	119,920	4,650	5,480	2,220
HNA090CP0	KA090CP0	SA090CP0	228.6	241.3	6.35	111	0.2	12,500	4,180	18,730	12,140	880	570	2,160
HNB090CP0	KB090CP0	SB090CP0	228.6	244.475	7.938	93	0.299	16,810	5,920	24,640	17,170	1,170	810	2,150
HNC090CP0	KC090CP0	SC090CP0	228.6	247.65	9.525	75	0.426	20,060	7,700	28,780	22,330	1,370	1,060	2,130
HND090CP0	KD090CP0	SD090CP0	228.6	254	12.7	57	0.78	28,910	13,210	44,750	38,340	2,160	1,850	2,110
HNF090CP0	KF090CP0	SF090CP0	228.6	266.7	19.05	39	1.769	48,930	23,840	70,020	69,170	3,470	3,430	2,050
HNG090CP0	KG090CP0	SG090CP0	228.6	279.4	25.4	30	3.266	73,040	43,240	112,410	125,440	5,710	6,370	2,000
HNA100CP0	KA100CP0	SA100CP0	254	266.7	6.35	123	0.227	13,830	4,400	20,730	12,720	1,080	660	1,950
HNB100CP0	KB100CP0	SB100CP0	254	269.875	7.938	103	0.331	18,640	6,230	27,270	18,020	1,430	940	1,940
HNC100CP0	KC100CP0	SC100CP0	254	273.05	9.525	83	0.481	22,200	7,920	31,760	23,000	1,670	1,210	1,930
HND100CP0	KD100CP0	SD100CP0	254	279.4	12.7	63	0.853	31,940	13,660	49,290	39,590	2,630	2,110	1,900
HNF100CP0	KF100CP0	SF100CP0	254	292.1	19.05	43	1.95	53,960	24,690	76,780	71,440	4,190	3,900	1,860
HNG100CP0	KG100CP0	SG100CP0	254	304.8	25.4	33	3.583	80,330	44,660	122,860	129,490	6,860	7,240	1,820
HNA110CP0	KA110CP0	SA110CP0	279.4	292.1	6.35	135	0.236	15,170	4,580	22,730	13,260	1,300	760	1,780
HNB110CP0	KB110CP0	SB110CP0	279.4	295.275	7.938	113	0.34	20,420	6,510	29,800	18,370	1,710	1,060	1,770
HNC110CP0	KC110CP0	SC110CP0	279.4	298.45	9.525	91	0.526	24,330	8,360	34,700	23,490	2,010	1,360	1,760
HND110CP0	KD110CP0	SD110CP0	279.4	304.8	12.7	69	0.934	35,010	14,150	53,820	41,010	3,140	2,400	1,740
HNF110CP0	KF110CP0	SF110CP0	279.4	317.5	19.05	47	2.177	58,980	25,950	83,580	73,880	4,990	4,410	1,700
HNG110CP0	KG110CP0	SG110CP0	279.4	330.2	25.4	36	3.901	87,630	46,080	133,360	133,710	8,130	8,150	1,670
HNA120CP0	KA120CP0	SA120CP0	304.8	317.5	6.35	147	0.254	16,550	4,800	24,730	13,700	1,540	850	1,630
HNB120CP0	KB120CP0	SB120CP0	304.8	320.675	7.938	123	0.376	22,240	6,850	32,430	18,990	2,030	1,190	1,620
HNC120CP0	KC120CP0	SC120CP0	304.8	323.85	9.525	99	0.567	26,470	8,780	37,720	24,330	2,370	1,530	1,620
HND120CP0	KD120CP0	SD120CP0	304.8	330.2	12.7	75	1.021	38,030	14,770	58,450	42,840	3,710	2,720	1,600
HNF120CP0	KF120CP0	SE120CP0	304.8	342.9	19.05	51	2.359	64,010	27,160	90,480	76,510	5,860	4,950	1,570
HNG120CP0	KG120CP0	SG120CP0	304.8	355.6	25.4	39	4.218	94,930	47,550	143,900	137,850	9,500	9,100	1,540
HNB140CP0	KB140CP0	SB140CP0	355.6	371.475	7.938	143	0.476	25,840	7,470	37,590	20,110	2,730	1,460	1,400
HNC140CP0	KC140CP0	SC140CP0	355.6	374.65	9.525	115	0.689	30,740	9,580	43,680	25,800	3,190	1,880	1,390
HND140CP0	KD140CP0	SD140CP0	355.6	381	12.7	87	1.238	44,130	15,390	67,520	44,620	4,970	3,290	1,380
HNF140CP0	KF140CP0	SF140CP0	355.6	393.7	19.05	59	2.722	74,060	29,450	104,130	80,470	7,800	6,030	1,360
HNG140CP0	KG140CP0	SG140CP0	355.6	406.4	25.4	45	4.899	109,520	50,180	164,940	145,500	12,570	11,090	1,330
HNB160CP0	KB160CP0	SB160CP0	406.4	422.275	7.938	163	0.544	29,450	8,060	42,790	21,350	3,540	1,770	1,230
HNC160CP0	KC160CP0	SC160CP0	406.4	425.45	9.525	131	0.785	35,050	10,320	49,640	26,910	4,130	2,240	1,220
HND160CP0	KD160CP0	SD160CP0	406.4	431.8	12.7	99	1.406	50,220	16,410	76,640	46,710	6,420	3,920	1,210
HNF160CP0	KF160CP0	SF160CP0	406.4	444.5	19.05	67	3.221	84,070	31,600	117,790	84,520	10,020	7,190	1,190
HNG160CP0	KG160CP0	SG160CP0	406.4	457.2	25.4	51	5.579	124,150	52,580	185,980	152,440	16,060	13,170	1,180
HNB180CP0	KB180CP0	SB180CP0	457.2	473.075	7.938	183	0.612	33,090	8,610	47,950	22,460	4,460	2,090	1,090
HNC180CP0	KC180CP0	SC180CP0	457.2	476.25	9.525	147	0.88	39,320	11,020	55,650	28,420	5,190	2,650	1,090
HND180CP0	KD180CP0	SD180CP0	457.2	482.6	12.7	111	1.579	56,270	17,490	85,670	48,350	8,050	4,540	1,080
HNF180CP0	KF180CP0	SF180CP0	457.2	495.3	19.05	75	3.583	94,120	33,620	131,490	88,880	12,520	8,460	1,070
HNG180CP0	KG180CP0	SG180CP0	457.2	508	25.4	57	6.214	138,740	55,010	207,020	158,620	19,980	15,310	1,050
HNB200CP0	KB200CP0	SB200CP0	508	523.875	7.938	203	0.68	36,700	9,130	53,110	23,400	5,480	2,410	980
HNC200CP0	KC200CP0	SC200CP0	508	527.05	9.525	163	0.98	43,590	11,680	61,610	29,670	6,380	3,070	980
HND200CP0	KD200CP0	SD200CP0	508	533.4	12.7	123	1.746	62,360	18,520	94,840	50,620	9,870	5,270	980
HNF200CP0	KF200CP0	SF200CP0	508	546.1	19.05	83	4.037	104,180	35,520	145,100	91,500	15,300	9,650	960
HNG200CP0	KG200CP0	SG200CP0	508	558.8	25.4	63	7.167	153,330	58,020	227,930	163,610	24,320	17,460	950
HNC250CP0	KC250CP0	SC250CP0	635	654.05	9.525	203	1.22	54,270	13,180	76,510	32,470	9,860	4,190	790
HND250CP0	KD250CP0	SD250CP0	635	660.4	12.7	153	2.173	77,580	20,860	117,480	54,540	15,220	7,060	780
HNF250CP0	KF250CP0	SF250CP0	635	673.1	19.05	103	4.944	129,270	39,870	179,130	97,460	23,430	12,750	780
HNG250CP0	KG250CP0	SG250CP0	635	685.8	25.4	78	8.845	189,850	64,900	280,730	178,370	37,080	23,560	770
HNC300CP0	KC300CP0	SC300CP0	762	781.05	9.525	243	1.456	64,990	14,500	91,460	35,590	14,110	5,490	660
HND300CP0	KD300CP0	SD300CP0	762	787.4	12.7	183	2.599	92,790	22,920	140,300	59,780	21,740	9,270	660
HNF300CP0	KF300CP0	SF300CP0	762	800.1	19.05	123	5.897	154,350	43,720	213,340	105,070	33,330	16,410	650
HNG300CP0	KG300CP0	SG300CP0	762	812.8	25.4	93	10.569	226,370	71,010	333,350	189,090	52,500	29,780	650
HNF350CP0	KF350CP0	SF350CP0	889	927.1	19.05	143	6.849	179,490	47,160	247,370	111,070	44,930	20,170	560
HNG350CP0	KG350CP0	SG350CP0	889	939.8	25.4	108	12.292	262,890	76,490	385,570	196,260	70,510	35,890	560
HNF400CP0	KF400CP0	SF400CP0	1016	1054.1	19.05	163	7.802	204,570	50,270	281,570	118,010	58,290	24,430	490
HNG400CP0	KG400CP0	SG400CP0	1016	1066.8	25.4	123	13.971	299,410	81,430	438,550	209,420	91,340	43,620	490
