铜管轧机专用轴承
作者： 发布时间：2020-03-26 浏览次数：1314

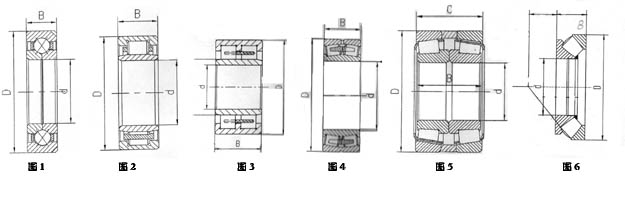

| 轴承代号 | 外形尺寸(mm) | 额定动负荷Cr/KN | 重量Kg | 轴承类型 | 图号 | ||||
| STON | FAG | SKF | d | D | B | ||||
| STON-236 | NU2318EM1 | NU2318EC3 | 90 | 190 | 64 | 430 | 8.33 | 圆柱滚子轴承 | 2 |
| STON-237 | 567512 | BCIB322345/MB1 | 280 | 340 | 30 | 290 | 6.02 | 圆柱滚子轴承 | 3 |
| STON-238 | NU1032MPAC3 | NU1032NM2PC3B2 | 160 | 240 | 38 | 245 | 6.45 | 圆柱滚子轴承 | 1 |
| STON-240 | N2218EMPC3 | N2218ECM2P/C3 | 90 | 160 | 40 | 240 | 3.31 | 圆柱滚子轴承 | 3 |
| STON-241 | N2219EMPC3 | N2219ECM2PC3 | 95 | 170 | 43 | 285 | 3.98 | 圆柱滚子轴承 | 3 |
| STON-242 | N2860M | N1956BCM/C3 | 300 | 390 | 48 | 465 | 15.08 | 圆柱滚子轴承 | 3 |
| STON-245 | 527251 | 315800 | 820 | 990 | 72 | 430 | 121.7 | 圆柱滚子轴承 | 1 |
| STON-246 | NU2318EM1 | NU2318E/C3 | 90 | 190 | 64 | 430 | 8.33 | 圆柱滚子轴承 | 1 |
| STON-939 | 567513 | BFSB353290/MB | 220 | 320 | 65 | 880 | 3 | 推力圆锥轴承 | 4 |
| STON-343 | 231228 | 23122C/C3W33YX03 | 110 | 180 | 56 | 360 | 3 | 调心滚子轴承 | 5 |
| STON-644 | 568011 | 71992AMB/P508CAQ | 460 | 580 | 130 | 609 | 1 | 角接触球轴承 | 7 |
| STON-747 | 31318A.120.NMCA | 31318J2/DF | 90 | 190 | 86 | 455 | 2 | 圆锥滚子轴承 | 6 |
| STON-648 | 568010 | BT2B328027 | 260 | 360 | 110 | 406 | 1 | 角接触球轴承 | 7 |
| STON-649 | QJ218N2MAC4B20 | QJ218N2MAC4B20 | 90 | 160 | 30 | 176 | 3 | 四点接触球轴承 | 8 |
