串联推力轴承研发生产中
作者： 发布时间：2020-03-31 浏览次数：1654

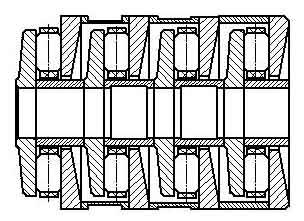

洛阳华纳精密轴承科技有限公司 研发生产串联推力轴承
尺寸规格如下：
| 外形尺寸 (mm) Dimension | 列数 Rows | 额定负荷 | 重量 | 轴承代号 | ||||
| (KN) Rated load | Weight (kg) | |||||||
| d | D | H | Ca | Coa | 新代号 New | 旧代号 Old | ||
| 4 | 20 | 32 | 3 | 18 | 35 | 0.053 | M3CT420 | T3AR420 |
| 4 | 24 | 62 | 6 | 63 | 93 | 0.16 | M6CT424 | T6AR424 |
| 62 | 6 | 63 | 93 | 0.16 | M6CT424X1 | -- | ||
| 5 | 27 | 52 | 4 | 45 | 92 | 0.155 | M4CT527 | T4AR527 |
| 78 | 6 | 62 | 137 | 0.236 | M6CT527 | T6AR527 | ||
| 37 | 78 | 4 | 120 | 228 | -- | M4CT537 | T4AR537 | |
| 117 | 6 | 165 | 376 | -- | M6CT537 | T6AR537 | ||
| 6 | 30 | 88 | 6 | 74 | 191 | 0.321 | M6CT630 | T6AR630 |
| 45 | 69 | 3 | 136 | 259 | -- | M3CT645 | T3AR645 | |
| 92 | 4 | 170 | 346 | -- | M4CT645 | T4AR645 | ||
| 183.5 | 8 | 292 | 693 | -- | M8CT645 | T8AR645 | ||
| 10 | 37 | 78 | 4 | 95 | 242 | 0.486 | M4CT1037 | T4AR1037 |
| 12 | 42 | 41.5 | 2 | 70 | 157 | 0.32 | M2CT1242 | T2AR1242 |
| 62.5 | 3 | 97 | 235 | 0.463 | M3CT1242 | T3AR1242 | ||
| 83.5 | 4 | 122 | 313 | 0.64 | M4CT1242 | T4AR1242 | ||
| 104.6 | 5 | 145 | 391 | 0.797 | M5CT1242 | T5AR1242 | ||
| 125.5 | 6 | 156 | 470 | 0.934 | M6CT1242 | T6AR1242 | ||
| 18 | 58 | 126 | 5 | 268 | 765 | 1.787 | M5CT1858 | T5AR1858 |
| 58 | 107.5 | 5 | 262 | 818 | 1.61 | M5CT1858X2 | -- | |
| 60 | 101 | 4 | 227 | 711 | 1.62 | M4CT1860 | T4AR1860 | |
| 72 | 172 | 6 | 562 | 1829 | 3.51 | M6CT1872 | T6AR1872 | |
| 80 | 200 | 7 | 600 | 2217 | 6.83 | M7CT1880 | T7AR1880 | |
| 100 | 304 | 8 | 1175 | 4586 | 13.03 | M8CT18100 | T8AR18100 | |
| 20 | 47 | 98 | 5 | 154 | 453 | 0.834 | M5CT2047 | T5AR2047 |
| 60 | 101 | 4 | 190 | 595 | 1.62 | M4CT2060 | T4AR2060 | |
| 22 | 62 | 110 | 5 | 270 | 896 | 1.78 | M5CT2262 | T5AR2262 |
| 132 | 6 | 310 | 1160 | 2.1 | M6CT2262 | T6AR2262 | ||
| 64 | 101 | 4 | 227 | 677 | 1.7 | M4CT2264 | T4AR2264 | |
| 128.5 | 5 | 270 | 839 | 2.13 | M5CT2264 | T5AR2264 | ||
| 153 | 6 | 312 | 1009 | 2.55 | M6CT2264 | T6AR2264 | ||
| 23 | 62 | 105 | 4 | 228 | 717 | 1.6 | M4CT2362 | T4AR2362 |
| 85 | 97 | 3 | 361 | 1359 | 3.118 | M3CT2385 | T3AR2385 | |
| 90 | 209.75 | 6 | 732 | 2545 | 7.75 | M6CT2390 | T6AR2390 | |
| 24 | 68 | 70 | 3 | 189 | 310 | 1.4 | M3CT2468 | T3AR2468 |
| 118 | 5 | 292 | 1132 | 2.32 | M5CT2468 | T5AR2468 | ||
| 25 | 77 | 134 | 5 | 350 | 1402 | 3.48 | M5CT2577 | T5AR2577 |
| 28 | 66 | 82 | 3 | 290 | 660 | 1.054 | M3CT2866 | T3AR2866 |
| 107.5 | 4 | 361 | 840 | 1.74 | M4CT2866 | T4AR2866 | ||
| 28 | 76 | 135 | 5 | 443 | 1464 | 3.199 | M5CT2876 | T5AR2876 |
| 29 | 90 | 98 | 3 | 292.3 | 1129 | 3.48 | M3CT2990 | T3AR2990 |
| 30 | 68 | 100 | 4 | 261 | 798 | 1.79 | M4CT3068 | T4AR3068 |
| 30 | 73 | 89 | 3 | 197 | 627 | 2.05 | M3CT3073 | T3AR3073 |
| 120 | 4 | 264 | 836 | 2.74 | M4CT3073 | T4AR3073 | ||
| 151 | 5 | 293 | 1045 | 3.42 | M5CT3073 | T5AR3073 | ||
| 182 | 6 | 338 | 1197 | 3.72 | M6CT3073 | T6AR3073 | ||
| 75 | 112 | 4 | 264 | 836 | 2.29 | M4CT3075YB | -- | |
| 100 | 150.5 | 4 | 564 | 2086 | 6.58 | M4CT30100 | T4AR30100 | |
| 127 | 288 | 6 | 1295 | 5235 | 21.7 | M6CT30127 | T6AR30127 | |
| 32 | 78 | 84 | 3 | 290 | 847 | 1.93 | M3CT3278 | T3AR3278 |
| 110.5 | 4 | 362 | 1128 | 2.58 | M4CT3278 | T4AR3278 | ||
| 137 | 5 | 442 | 1397 | 3.22 | M5CT3278 | T5AR3278 | ||
| 163.5 | 6 | 497 | 1616 | 3.88 | M6CT3278 | T6AR3278 | ||
| 33 | 105 | 112 | 3 | 470 | 1686 | 5.33 | M3CT33105 | T3AR33105 |
| 150.5 | 4 | 589 | 2248 | 7.11 | M4CT33105 | T4AR33105 | ||
| 34 | 95 | 130 | 4 | 426 | 1672 | 5.166 | M4CT3495 | T4AR3495 |
| 163 | 5 | 507 | 1996 | 6.43 | M5CT3495 | T5AR3495 | ||
| 38 | 150 | 163 | 3 | 966 | 3674 | 16.28 | M3CT38150 | T3AR38150 |
| 214.5 | 4 | 1261 | 4743 | 21.7 | M4CT38150 | T4AR38150 | ||
| 160 | 360 | 6 | 1410 | 7100 | 40.8 | M6CT38160 | T6AR38160 | |
| 40 | 110 | 123 | 3 | 525 | 1999 | 6.26 | M3CT40110 | T3AR40110 |
| 164 | 4 | 656 | 2657 | 8.35 | M4CT40110 | T4AR40110 | ||
| 127 | 177 | 4 | 826 | 3503 | 13.3 | M4CT40127 | T4AR40127 | |
| 50 | 160 | 167 | 3 | 820 | 3950 | -- | M3CT50160 | T3AR50160 |
| 85 | 290 | 580 | 6 | 6200 | 26000 | -- | M6CT85290 | T6AR85290 |
| 120 | 360 | 900.5 | 8 | 12100 | 62400 | -- | M8CT120360 | T8AR120360 |
| 465 | 985 | 8 | 14400 | 65600 | -- | M8CT120456 | T8AR120456 | |
| 140 | 360 | 424 | 4 | 8400 | 36200 | -- | M4CT140360 | T4AR140360 |
| 350 | 750 | 854 | 4 | 27000 | 118000 | -- | M4CT350750 | T4AR350750 |
| 420 | 900 | 768 | 3 | 29000 | 126000 | -- | M3CT420900 | T3AR420900 |
| 431.8 | 863 | 449.275 | 2 | 17180 | 88560 | -- | M2CT431863 | ZY431Z1 |
