剖分式调心滚子轴承
作者： 发布时间：2016-02-20 浏览次数：3318

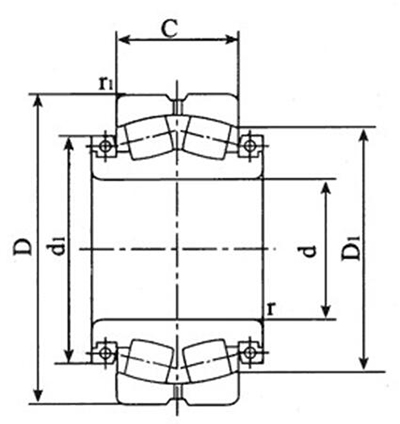

| 型号 | 外形尺寸(mm) | 基本负荷(KN) | Dimensions (mm) | 重量(KG) | |||||||
| d | D | B | C | rsmin | r1smin | 动 | 静 | d1 | D1 | ||
| 803824 | 120 | 200 | 142 | 80 | 2 | 2 | 555 | 900 | 166 | 169 | 17 |
| 803928 | 140 | 230 | 102 | 53 | 2 | 2 | 370 | 600 | 180 | 190 | 14 |
| 803828 | 140 | 290 | 110 | 80 | 3 | 3 | 838 | 1145 | 193 | 247.5 | 31.2 |
| 803830X3 | 148 | 225 | 142 | 75 | 2.1 | 2.1 | 535 | 950 | 180 | 197 | 14 |
| 803836 | 180 | 300 | 125 | 74 | 2.1 | 2.1 | 715 | 1200 | 220 | 248 | 30 |
| 803856 | 280 | 500 | 260 | 176 | 5 | 5 | 2710 | 4650 | 419 | 439 | 175 |
| 803860 | 300 | 500 | 240 | 160 | 5 | 5 | 2527 | 4465 | 418 | 434 | 165 |
| 803864K | 320 | 540 | 250 | 176 | 6 | 6 | 2395 | 4586 | 439 | 454 | 196.5 |
| 803868 | 340 | 580 | 280 | 190 | 5 | 5 | 2930 | 5574 | 475 | 487 | 235 |
| 803872 | 360 | 540 | 220 | 134 | 5 | 5 | 2250 | 4500 | 476 | 482 | 155 |
| 803880 | 400 | 600 | 240 | 148 | 5 | 5 | 2880 | 5850 | 522 | 541 | 205 |
| 803884 | 420 | 620 | 238 | 150 | 6 | 6 | 2880 | 5850 | 542 | 562 | 215 |
| 803892 | 460 | 700 | 245 | 165 | 6 | 6 | 3280 | 6550 | 604 | 635 | 340 |
| 803894 | 470 | 720 | 270 | 167 | 6 | 6 | 3570 | 7500 | 646 | 656 | 375 |
| 8039/560 | 560 | 800 | 230 | 150 | 5 | 5 | 3340 | 8150 | 669 | 742 | 320 |
| 8038/560 | 560 | 870 | 330 | 200 | 6 | 6 | 5060 | 11000 | 733 | 786 | 580 |
| 8039/600 | 600 | 920 | 310 | 212 | 9.5 | 7.5 | 5640 | 12000 | 798 | 837 | 690 |
| 8038/600 | 600 | 980 | 515 | 375 | 7.5 | 7.5 | 10400 | 21600 | 811 | 833 | 1350 |
| 8038/630 | 630 | 920 | 310 | 212 | 16 | 7.5 | 5245 | 11390 | 800 | 825 | 628 |
| 8038/670 | 670 | 980 | 350 | 230 | 7.5 | 7.5 | 6440 | 14000 | 860 | 890 | 800 |
| 8039/710 | 710 | 950 | 375 | 243 | 6 | 6 | 5750 | 15300 | 860 | 868 | 700 |
| 8038/710 | 710 | 1030 | 360 | 236 | 7.5 | 7.5 | 7020 | 15600 | 901 | 939 | 880 |
| 8039/750 | 750 | 1000 | 360 | 250 | 6 | 6 | 6300 | 17000 | 900 | 916 | 710 |
| 8038/750 | 750 | 1090 | 340 | 250 | 8 | 8 | 6600 | 15330 | 950 | 980 | 932 |
| 8038/750X2 | 750 | 1090 | 475 | 335 | 7.5 | 7.5 | 9950 | 24000 | 938 | 969 | 1300 |
| 8039/800 | 800 | 1060 | 370 | 258 | 6 | 6 | 6900 | 18600 | 955 | 968 | 8100 |
| 8038/800 | 800 | 1150 | 450 | 345 | 16 | 8 | 10000 | 24800 | 1010 | 1018 | 1500 |
| 8037/850 | 850 | 1120 | 380 | 272 | 6 | 6 | 7360 | 2800 | 1008 | 1028 | 830 |
| 8039/850 | 850 | 1180 | 331 | 206 | 6 | 6 | 6440 | 17000 | 1070 | 1100 | 880 |
| 8038/850 | 850 | 1280 | 430 | 280 | 7.5 | 7.5 | 10100 | 23200 | 1120 | 1177 | 1550 |
| 8038/850X1 | 850 | 1280 | 540 | 375 | 7.5 | 7.5 | 12400 | 31000 | 1123 | 1147 | 2350 |
| 8039/900 | 900 | 1180 | 400 | 280 | 6 | 6 | 8170 | 22800 | 1058 | 1086 | 1100 |
| 8038/900 | 900 | 1270 | 470 | 365 | 15 | 15 | 10000 | 28000 | 1160 | 1137 | 1872 |
| 8038/950 | 950 | 1250 | 420 | 300 | 7.5 | 7.536 | 8970 | 25500 | 1130 | 1150 | 1300 |
| 8038/1020 | 1020 | 1280 | 352 | 218 | 6 | 6 | 5980 | 19600 | 1192 | 1210 | 950 |
| 8038/1060 | 1060 | 1460 | 500 | 335 | 7.5 | 7.5 | 11500 | 33500 | 1330 | 1350 | 2470 |
| 8039/1120 | 1120 | 1460 | 500 | 335 | 7.5 | 7.5 | 11500 | 33500 | 1330 | 1350 | 2070 |
| 8038/1120 | 1120 | 1540 | 525 | 355 | 7.5 | 7.5 | 14400 | 44000 | 1401 | 1420 | 2850 |
| 8038/1250 | 1250 | 1750 | 560 | 375 | 9.5 | 9.5 | 19600 | 50000 | 1560 | 1607 | 3800 |
