汽车发电机轴承

作者：发布时间：2019-03-11 浏览次数：1682

打印收藏关闭

字体【大中小】

视力保护色

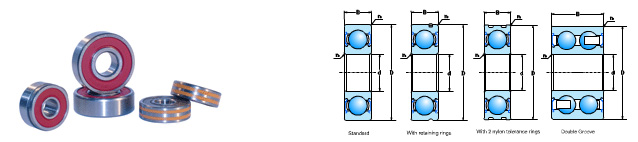

Dimensions(mm)				Basic load ratings(N)		Limiting speeds	Weight	Remarks	Item No.
d	D	B	rsmin	Cr	Cor	Rpm	Kg	Remarks	UJK
8	22	7	0.3	3350	1400	32000	0.015		608-2RDA
8	22	11	0.3	3350	1400	32000		with retaining ring	B874-2RDA
8	23	14	0.3	3350	1400	32000		with 2 nylon tolerence rings	B800-2RDA
8	23	11	0.3	3350	1400	32000		with retaining ring	B879-2RDA
8	23	14	0.3	3350	1400	32000		with retaining ring	B885-2RDA
9	26	8	0.3	4550	1960	30000	0.023		629-2RDA
10	23	11	0.3	2700	1270	30000		with retaining ring	B1046-2RDA
10	25	10	0.3	4550	1960	26000	0.024		62000-2RDA
10	26	8	0.3	4550	1960	29000	0.019		6000-2RDA
10	26	8	0.3	4550	1960	29000	0.019	with 2 nylon tolerance rings	6-100-2RDA
10	27	11	0.3	4550	1960	29000		with retaining ring	B1050-2RDA
10	27	14	0.3	4550	1960	29000		with 2 nylon tolerence rings	B900-2RDA
10	30	9	0.6	5100	2390	25000	0.035		6200-2RDA
12	28	8	0.3	5100	2390	26000	0.024		6001-2RDA
12	32	10	0.6	6100	2750	22000	0.04		6201-2RDA
12	32	14	0.6	6100	2750	22000	0.049		62201-2RDA
12	32	10	0.6	6100	2750	22000		with retaining ring	B2012-2RDA
12	35	18	0.6	6100	2750	22000			B2011-2RDA
12	37	12	1	9700	4200	20000	0.064		6301-2RDA
12.7	28.58	7.938	0.4	4040	1750	19000	0.018	Inch size: 1/2"x1-1/8"x5/16"	R8-2RDA
Dimensions(mm)				Basic load ratings(N)		Limiting speeds	Weight	Remarks	Item No.
d	D	B	rsmin	Cr	Cor	Rpm	Kg	Remarks	UJK
15	35	11	0.6	7750	3600	19000	0.048		6202-2RDA
15	35	13	0.6	7750	3600	19000			B2021-2RDA
15	38	19	0.6	7750	3600	19000			B2022-2RDA
15	42	13	1	11400	5450	17000	0.085		6302-2RDA
15	43	13	1	11400	5450	17000			B3021-2RDA
15	46	14	1	13500	6550	16000			B3022-2RDA
15	47	18	0.3	6800	3350	20000			B1583-2RDA
15	47	14	1	13500	6550	16000			B3031-2RDA
15	52	16	1.1	15900	7900	14000			B3041-2RDA
17	30	7	0.3	4650	2580	22000	0.021		6903-2RDA
17	35	10	0.3	6800	3350	20000	0.042		6003-2RDA
17	40	12	0.6	9600	4600	18000	0.072		6203-2RDA
17	47	14	1	13500	6550	16000	0.12		6303-2RDA
17	47	18	0.3	6800	3350	20000			B1594-2RDA
17	47	24	1	13500	6550	16000		Double row ball	B3032-2RDA
17	52	16	1.1	15900	7900	14000			B3042-2RDA
17	52	17	1.1	15900	7900	14000			B3043-2RDA
17	52	18	1.1	15900	7900	14000			B3044-2RDA
20	37	9	0.3	6400	3700	19000	0.041		6904-2RDA
20	42	12	0.6	9400	5050	18000	0.072		6004-2RDA
20	47	14	1	12800	6650	16000	0.11		6204-2RDA
20	52	15	1.1	15900	7900	14000	0.15		6304-2RDA
25	42	9	0.3	7050	4550	16000	0.046		6905-2RDA
25	47	12	0.6	10400	5850	15000	0.085		6005-2RDA
25	52	15	1	14000	7850	13000	0.132		6205-2RDA
25	62	17	1.1	21200	10900	12000	0.24		6305-2RDA
25	62	25.4	1.1	21200	10900	8100	0.384		63305-2RDA
30	47	9	0.3	7250	5000	14000	0.05		6906-2RDA
30	55	13	1	13200	8300	13000	0.12		6006-2RDA
30	62	16	1	19500	11300	11000	0.208		6206-2RDA
30	72	19	1.1	26700	15000	10000	0.39		6306-2RDA
30	72	30.2	1.1	26700	15000	6600	0.553		63306-2RDA
45	85	19	1.1	32500	20400	7800	0.44		6209-2RDA
