精密滚珠丝杠轴承量产中
作者： 发布时间：2019-02-26 浏览次数：1983
 |

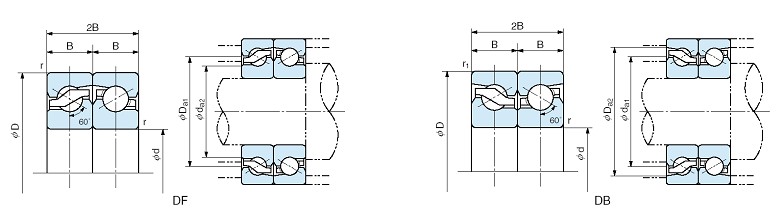

| 軸 承 型 番 | 主 要 寸 法(mm) | 基本動 | 軸向 | 容許轉速(rpm) | 啟動扭力 | 重量 |
| 額定荷重 | 限定荷重 | (N‧cm) | (kg) |
| d | D | B | 2B | r | r1 | Ca(N) | Coa(N) |
|
|
| (min) | (min) |
|
|
|
|
| 15TAB04DF(DB) | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 0.14 |
| 15TAB04DF(DB)-2NK | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 0.14 |
| 15TAB04DF(DB)-2LR | 15 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 0.14 |
| 17TAB04DF(DB) | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 0.13 |
| 17TAB04DF(DB)-2NK | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 0.13 |
| 17TAB04DF(DB)-2LR | 17 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 0.13 |
| 20TAB04DF(DB) | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | 15 | 0.12 |
| 20TAB04DF(DB)-2NK | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 6300 | - | 0.12 |
| 20TAB04DF(DB)-2LR | 20 | 47 | 15 | 30 | 1 | 0.6 | 25900 | 32000 | 4400 | - | 0.12 |
| 25TAB06DF(DB) | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | 20 | 0.24 |
| 25TAB06DF(DB)-2NK | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | - | 0.24 |
| 25TAB06DF(DB)-2LR | 25 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 3250 | - | 0.24 |
| 30TAB06DF(DB) | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | 20 | 0.21 |
| 30TAB06DF(DB)-2NK | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 4650 | - | 0.21 |
| 30TAB06DF(DB)-2LR | 30 | 62 | 15 | 30 | 1 | 0.6 | 29900 | 46400 | 3250 | - | 0.21 |
| 35TAB07DF(DB) | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | 25 | 0.29 |
| 35TAB07DF(DB)-2NK | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | - | 0.29 |
| 35TAB07DF(DB)-2LR | 35 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 2600 | - | 0.29 |
| 40TAB07DF(DB) | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | 25 | 0.26 |
| 40TAB07DF(DB)-2NK | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 3750 | - | 0.26 |
| 40TAB07DF(DB)-2LR | 40 | 72 | 15 | 30 | 1 | 0.6 | 32500 | 54300 | 2600 | - | 0.26 |
| 40TAB09DF(DB) | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 3150 | 30 | 0.62 |
| 40TAB09DF(DB)-2NK | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 3150 | - | 0.62 |
| 40TAB09DF(DB)-2LR | 40 | 90 | 20 | 40 | 1 | 0.6 | 65000 | 101000 | 2200 | - | 0.62 |
| 45TAB07DF(DB) | 45 | 75 | 15 | 30 | 1 | 0.6 | 33500 | 59500 | 3400 | 50 | 0.25 |
| 45TAB10DF(DB) | 45 | 100 | 20 | 40 | 1 | 0.6 | 68000 | 113000 | 2850 | 60 | 0.79 |
| 50TAB10DF(DB) | 50 | 100 | 20 | 40 | 1 | 0.6 | 69500 | 119000 | 2700 | 65 | 0.72 |
| 55TAB10DF(DB) | 55 | 100 | 20 | 40 | 1 | 0.6 | 69500 | 119000 | 2700 | 65 | 0.65 |
| 55TAB12DF(DB) | 55 | 120 | 20 | 40 | 1 | 0.6 | 73000 | 137000 | 2300 | 70 | 1.15 |
| 60TAB12DF(DB) | 60 | 120 | 20 | 40 | 1 | 0.6 | 73000 | 137000 | 2300 | 70 | 1.08 |
