CSA210-GPR-UG 批量生产中
作者： 发布时间：2019-02-26 浏览次数：1623
|

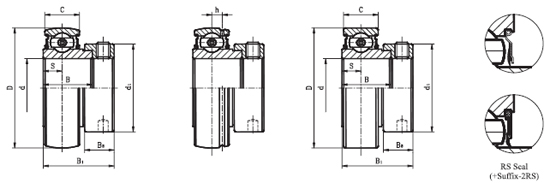

| Bearing No. | Shaft Dia | Dimensions(mm)/(in.) | Basic load ratings(N) | Mass(kg) | |||||||||
| d | D | C | B | B1 | S | h | B3 | d1 | Dynamic Cr | Static Cor | |||
| (in.) | (mm) | ||||||||||||
| CSA201 | 12 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.14 | |
| CSA201-8 | 1/2 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.14 | |
| CSA202 | 15 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA202-10 | 5/8 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA203 | 17 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA203-11 | 11/16 | 40 | 12 | 19.1 | 28.6 | 6.5 | 3.6 | 13.5 | 28.6 | 9550 | 4780 | 0.13 | |
| CSA104-12 | 3/4 | 42 | 12 | 16.14 | 26.42 | 6 | 13.2 | 33 | 9380 | 5000 | 0.12 | ||
| CSA204-12 | 3/4 | 47 | 14 | 21.4 | 30.9 | 7.5 | 4 | 13.5 | 33.3 | 12800 | 6650 | 0.18 | |
| CSA204 | 20 | 47 | 14 | 21.4 | 30.9 | 7.5 | 7 | 13.5 | 33.3 | 12800 | 6650 | 0.15 | |
| CSA205-14 | 7/8 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.21 | |
| CSA205-15 | 15/16 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.19 | |
| CSA205 | 25 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.19 | |
| CSA205-16 | 1 | 52 | 15 | 21.4 | 30.9 | 7.5 | 4.3 | 13.5 | 38.1 | 14000 | 7880 | 0.18 | |
| CSA206-18 | 1-1/8 | 62 | 16 | 23.8 | 35.7 | 9 | 5 | 15.9 | 44.5 | 19500 | 11200 | 0.35 | |
| CSA206 | 30 | 62 | 16 | 23.8 | 35.7 | 9 | 5 | 15.9 | 44.5 | 19500 | 11200 | 0.33 | |
| C206-19 | 1-3/16 | 62 | 16 | 23.8 | 35.7 | 9 | 5 | 15.9 | 44.5 | 19500 | 11200 | 0.31 | |
| CSA206-20 | 1-1/4 | 62 | 16 | 23.8 | 35.7 | 9 | 5 | 15.9 | 44.5 | 19500 | 11200 | 0.29 | |
| CSA207-20 | 1-1/4 | 72 | 17 | 25.4 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.56 | |
| CSA207-21 | 1-5/16 | 72 | 17 | 25.4 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.53 | |
| CSA207-22 | 1-3/8 | 72 | 17 | 25.4 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.51 | |
| CSA207 | 35 | 72 | 17 | 25.4 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.50 | |
| CSA207-23 | 1-7/16 | 72 | 17 | 25.4 | 38.9 | 9.5 | 5.7 | 17.5 | 55.6 | 25700 | 15200 | 0.48 | |
| CSA208-24 | 1-1/2 | 80 | 18 | 30.2 | 43.7 | 11 | 6.2 | 18.3 | 60.3 | 29600 | 18200 | 0.68 | |
| CSA208-25 | 1-9/16 | 80 | 18 | 30.2 | 43.7 | 11 | 6.2 | 18.3 | 60.3 | 29600 | 18200 | 0.67 | |
| CSA208 | 40 | 80 | 18 | 30.2 | 43.7 | 11 | 6.2 | 18.3 | 60.3 | 29600 | 18200 | 0.65 | |
| CSA209-26 | 1-5/8 | 85 | 19 | 30.2 | 43.7 | 11 | 6.5 | 18.3 | 63.5 | 31850 | 20800 | 0.76 | |
| CSA209-27 | 1-11/16 | 85 | 19 | 30.2 | 43.7 | 11 | 6.8 | 18.3 | 63.5 | 31850 | 20800 | 0.73 | |
| CSA209-28 | 1-3/4 | 85 | 19 | 30.2 | 43.7 | 11 | 6.8 | 18.3 | 63.5 | 31850 | 20800 | 0.69 | |
| CSA209 | 45 | 85 | 19 | 30.2 | 43.7 | 11 | 6.5 | 18.3 | 63.5 | 31850 | 20800 | 0.69 | |
| CSA210-30 | 1-7/8 | 90 | 20 | 30.2 | 43.6 | 11 | 6.5 | 18.3 | 69.9 | 35100 | 23200 | 0.83 | |
| CSA210-31 | 1-15/16 | 90 | 20 | 30.2 | 43.6 | 11 | 6.5 | 18.3 | 69.9 | 35100 | 23200 | 0.79 | |
| CSA210 | 50 | 90 | 20 | 30.2 | 43.6 | 11 | 6.5 | 18.3 | 69.9 | 35100 | 23200 | 0.79 | |
| CSA211-32 | 2 | 100 | 24 | 32.5 | 48.4 | 12 | 7.2 | 20.7 | 76.2 | 43550 | 29200 | 1.17 | |
| CSA211-34 | 2-1/8 | 100 | 24 | 32.5 | 48.4 | 12 | 7.2 | 20.7 | 76.2 | 43550 | 29200 | 1.07 | |
| CSA211 | 55 | 100 | 24 | 32.4 | 48.4 | 12 | 7.2 | 20.7 | 76.2 | 43550 | 29200 | 1.04 | |
| CSA211-35 | 2-3/16 | 100 | 24 | 32.4 | 48.4 | 12 | 7.2 | 20.7 | 76.2 | 43550 | 29200 | 1.01 | |
| CSA212-36 | 2-1/4 | 110 | 24 | 33.4 | 49.3 | 12 | 8 | 22.3 | 84.2 | 47800 | 32800 | 1.30 | |
| CSA212 | 60 | 110 | 24 | 33.4 | 49.3 | 12 | 8 | 22.3 | 84.2 | 47800 | 32800 | 1.20 | |
| CSA212-38 | 2-3/8 | 110 | 24 | 33.4 | 49.3 | 12 | 8 | 22.3 | 84.2 | 47800 | 32800 | 1.09 | |
| CSA212-39 | 2-7/16 | 110 | 24 | 33.4 | 49.3 | 12 | 8 | 22.3 | 84.2 | 47800 | 32800 | HRBN | |
