NU5200系列量产中
作者： 发布时间：2018-11-28 浏览次数：2966

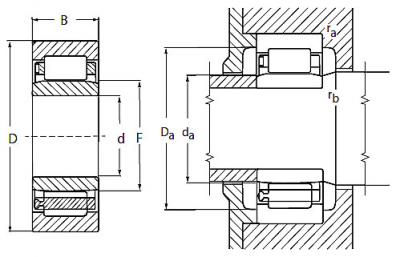

| Name | B | D | d | Da | da |
| NU5208 | 1.1875" | 3.1496" | 1.5748" | 2.75" | 1.87" |
| NU5209 | 1.1875" | 3.3465" | 1.7717" | 2.96" | 2.08" |
| NU5210 | 1.1875" | 3.5433" | 1.9685" | 3.17" | 2.26" |
| NU5211 | 1.3125" | 3.9370" | 2.1654" | 3.48" | 2.50" |
| NU5212 | 1.4375" | 4.3307" | 2.3622" | 3.86" | 2.71" |
| NU5213 | 1.500" | 4.7244" | 2.5591" | 4.18" | 3.01" |
| NU5214 | 1.5625" | 4.9213" | 2.7559" | 4.41" | 3.17" |
| NU5215 | 1.6250" | 5.1181" | 2.9528" | 4.59" | 3.33" |
| NU5216 | 1.750" | 5.5118" | 3.1496" | 4.94" | 3.56" |
| NU5217 | 1.9375" | 5.9055" | 3.3465" | 5.31" | 3.82" |
| NU5218 | 2.0625" | 6.2992" | 3.5433" | 5.62" | 4.01" |
| NU5219 | 2.1875" | 6.6929" | 3.7402" | 5.97" | 4.25" |
| NU5220 | 2.3750" | 7.0866" | 3.9370" | 6.37" | 4.53" |
| NU5221 | 2.5625" | 7.4803" | 4.1339" | 6.66" | 4.73" |
| NU5222 | 2.7500" | 7.8740" | 4.3307" | 6.96" | 4.97" |
| NU5224 | 3.0000" | 8.4646" | 4.7244" | 7.55" | 5.43" |
| NU5226 | 3.1250" | 9.0551" | 5.1181" | 8.15" | 5.80" |
| NU5228 | 3.2500" | 9.8425" | 5.5118" | 8.86" | 6.30" |
| NU5230 | 3.500" | 10.6299" | 5.9055" | 9.55" | 6.79" |
| NU5232 | 3.875" | 11.4173" | 6.2992" | 10.08" | 7.24" |
| NU5234 | 4.125" | 12.2047" | 6.6929" | 10.81" | 7.68" |
| NU5236 | 4.250" | 12.5984" | 7.0866" | 11.26" | 8.09" |
| NU5238 | 4.500" | 13.3858" | 7.4803" | 11.91" | 8.56" |
| NU5240 | 4.750" | 14.1732" | 7.8740" | 12.61" | 9.06" |
