87400系列推力轴承生产销售
作者： 发布时间：2018-11-22 浏览次数：1838

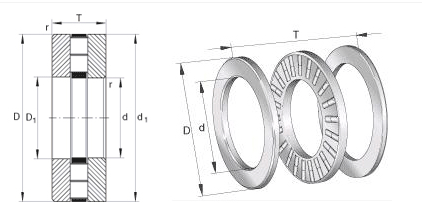

| Part Number | Dimension (mm) | |||||||
| d | D1 | D | d1 | h | T | b | ||
| 87408 | 87408M | 40 | ~ | 90 | 90 | ~ | 23 | ~ |
| 87409 | 87409M | 45 | 47 | 100 | 100 | 9 | 25 | 7 |
| 87410 | 87410M | 50 | 52 | 110 | 110 | 9.5 | 27 | 8 |
| 87411 | 87411M | 55 | 57 | 120 | 120 | 10.5 | 29 | 8 |
| 87412 | 87412M | 60 | 62 | 130 | 130 | 11.5 | 32 | 9 |
| 87413 | 87413M | 65 | 68 | 140 | 140 | 10 | 12 | 10 |
| 87414 | 87414M | 70 | 73 | 150 | 150 | 12.5 | 36 | 11 |
| 87415 | 87415M | 75 | 78 | 160 | 160 | 13 | 38 | 12 |
| 87416 | 87416M | 80 | 83 | 170 | 170 | 14.5 | 41 | 12 |
| 87417 | 87417M | 85 | 88 | 180 | 180 | 14.5 | 42 | 13 |
| 87418 | 87418M | 90 | 93 | 190 | 190 | 16 | 45 | 13 |
| 87420 | 87420M | 100 | 103 | 210 | 210 | 17.5 | 50 | 15 |
| 87422 | 87422M | 110 | 113 | 230 | 230 | 18.5 | 54 | 17 |
| 87424 | 87424M | 120 | 123 | 250 | 250 | 20 | 58 | 18 |
| 87426 | 87426M | 130 | 134 | 270 | 270 | 22 | 63 | 19 |
| 87428 | 87428M | 140 | 144 | 280 | 280 | 22 | 63 | 19 |
| 87430 | 87430M | 150 | 154 | 300 | 300 | 23 | 67 | 21 |
| 87432 | 87432M | 160 | 164 | 320 | 320 | 25.5 | 73 | 22 |
| 87434 | 87434M | 170 | 174 | 340 | 340 | 27 | 78 | 24 |
| 87436 | 87436M | 180 | 184 | 360 | 360 | 28.5 | 82 | 25 |
| 87438 | 87438M | 190 | 195 | 380 | 380 | 29.5 | 85 | 26 |
| 87440 | 87440M | 200 | 205 | 400 | 400 | 31 | 90 | 28 |
