XLS系列英制量产中
作者： 发布时间：2020-09-28 浏览次数：1373
洛阳华纳精密轴承科技有限公司，生产研发的XLS系列英制薄壁角接触球轴承，产品质量替代进口工艺，生产工期短，有效的满足国内外用户的需要，材质选用的轴承钢，不锈钢等材质。根据不同客户的工况选择。
该产品广泛出口欧美市场

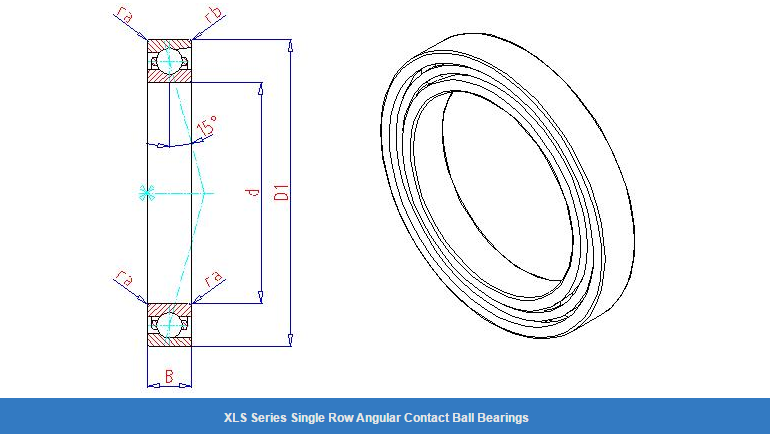

| Bore d | D1 | Width B | Grease Speed | Cr(KN) | Cor(KN) | |
| XLS-1 3/8 | 1.375 in | 2.5625 in | 0.5625 in | 11000 rpm | 22500 N | 15600 N |
| XLS-1 1/2 | 1.500 in | 2.6875 in | 0.5625 in | 9800 rpm | 23800 N | 17000 N |
| XLS-1 5/8 | 1.625 in | 2.8750 in | 0.5625 in | 9000 rpm | 24200 N | 18600 N |
| XLS-1 3/4 | 1.750 in | 3.0000 in | 0.5625 in | 8200 rpm | 25100 N | 20000 N |
| XLS-1 7/8 | 1.875 in | 3.1875 in | 0.6250 in | 8200 rpm | 29600 N | 23600 N |
| XLS-2 | 2.000 in | 3.3125 in | 0.6250 in | 7800 rpm | 32000 N | 25500 N |
| XLS-2 1/8 | 2.125 in | 3.4375 in | 0.6250 in | 7400 rpm | 30200 N | 25500 N |
| XLS-2 1/4 | 2.250 in | 3.5625 in | 0.6250 in | 7100 rpm | 31200 N | 27000 N |
| XLS-2 1/2-S | 2.500 in | 3.8750 in | 0.6875 in | 6500 rpm | 26000 N | 22000 N |
| XLS-2 1/2-S | 2.500 in | 3.8750 in | 0.6875 in | 6400 rpm | 32500 N | 31000 N |
| XLS-2 5/8 | 2.625 in | 4.1250 in | 0.6875 in | 6100 rpm | 42300 N | 39000 N |
| XLS-2 3/4 | 2.750 in | 4.1250 in | 0.6875 in | 6000 rpm | 42300 N | 39000 N |
| XLS-3 | 3.000 in | 4.5000 in | 0.7500 in | 5500 rpm | 44200 N | 44000 N |
| XLS-3 1/4 | 3.250 in | 4.7500 in | 0.7500 in | 5100 rpm | 44900 N | 46500 N |
| XLS-3 1/2 | 3.500 in | 5.0000 in | 0.7500 in | 4800 rpm | 47500 N | 51000 N |
| XLS-3 3/4 | 3.750 in | 5.2500 in | 0.7500 in | 4500 rpm | 47500 N | 53000 N |
| XLS-4 1/4 | 4.250 in | 6.0000 in | 0.8750 in | 3900 rpm | 61800 N | 69500 N |
| XLS-4 1/2 | 4.500 in | 6.2500 in | 0.8750 in | 3800 rpm | 61800 N | 73500 N |
| XLS-4 3/4 | 4.750 in | 6.5000 in | 0.8750 in | 3600 rpm | 63700 N | 76500 N |
| XLS-5 | 5.000 in | 7.0000 in | 1.0000 in | 3400 rpm | 7800 N | 91500 N |
| XLS-5 1/2 | 5.500 in | 7.5000 in | 1.0000 in | 3100 rpm | 79300 N | 100000 N |
| XLS-6 | 6.000 in | 8.0000 in | 1.0000 in | 2900 rpm | 81900 N | 108000 N |
| XLS-6 1/4 | 6.250 in | 8.5000 in | 1.1250 in | 2700 rpm | 97500 N | 129000 N |
| XLS-6 1/2 | 6.500 in | 8.7500 in | 1.1250 in | 2600 rpm | 99500 N | 134000 N |
| XLS-7 | 7.000 in | 9.5000 in | 1.2500 in | 2400 rpm | 119000 N | 160000 N |
| XLS-7 1/4 | 7.250 in | 9.7500 in | 1.2500 in | 2300 rpm | 121000 N | 166000 N |
| XLS-7 3/4 | 7.750 in | 10.5000 in | 1.3750 in | 2100 rpm | 138000 N | 193000 N |
| XLS-8 | 8.000 in | 10.7500 in | 1.3750 in | 2100 rpm | 140000 N | 200000 N |
| XLS-8 1/4 | 8.250 in | 11.0000 in | 1.3750 in | 2100 rpm | 140000 N | 204000 N |
| XLS-8 1/2 | 8.500 in | 11.5000 in | 1.5000 in | 2000 rpm | 163000 N | 232000 N |
| XLS-9 | 9.000 in | 12.0000 in | 1.5000 in | 1900 rpm | 182000 N | 260000 N |
| XLS-10 | 10.000 in | 13.2500 in | 1.6250 in | 1600 rpm | 190000 N | 290000 N |
